Product Description
6,000 lb lifting capacity Automatic double safety lock system with air release 38" working height 4" drive-over height for approach of low vehicles Wheel kit, tow bar and rubber riser blocks standard Portable trolley for power unit and safety lock air release control SUV kit available

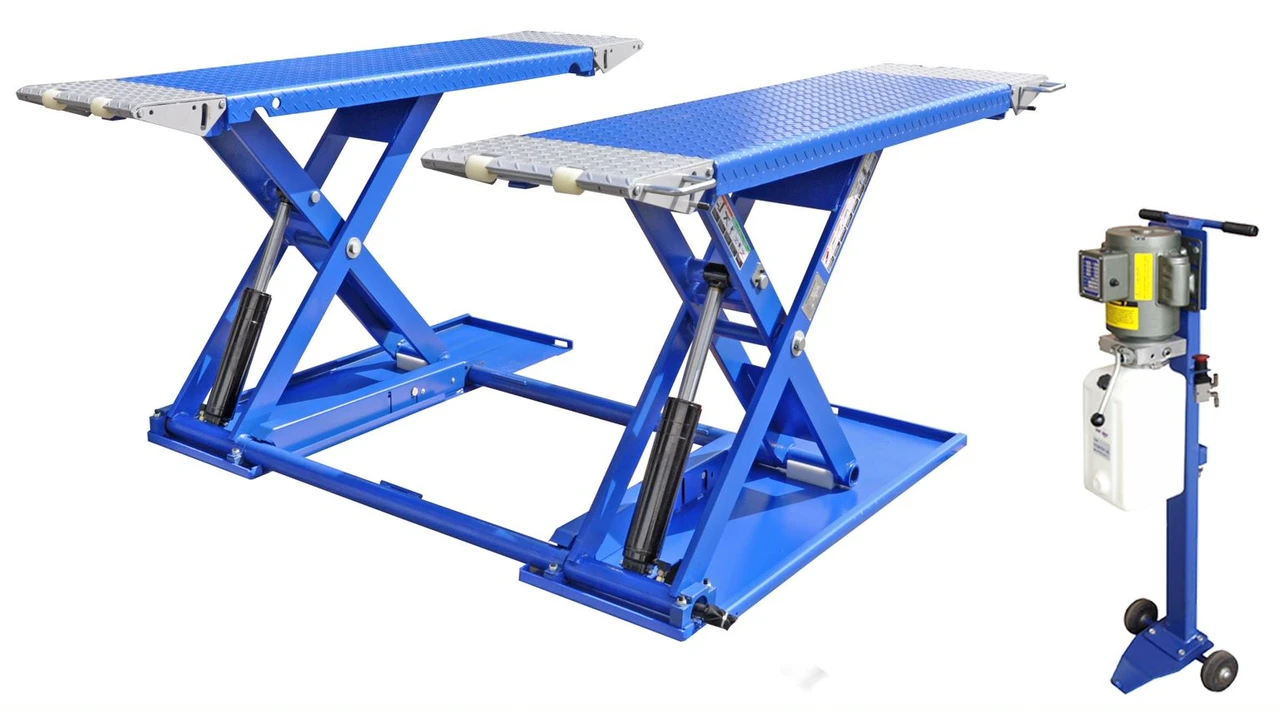

The MR6.5K-38 is a portable 6,500 lb. hydraulic mid-rise scissor frame lift, equipped with twin hydraulic cylinders, pneumatic single point / double lock release system designed to lift cars & light trucks to a comfortable working height of 38”. The lift comes standard with load bearing flip-up runway extensions, rubber spacer blocks, along with a power unit dolly, lift wheel kit & tow bar for convenient portability feature. The improved MR6.5K-38 lift now includes an additional weight capacity of 500 lbs. along with ‘flat top’ platforms as part of the improved design. The improved MR6.5K-38 is built for years of trouble-free service for brake work, wheel service, inspections & detailing applications.
Features
- 6,500 lb Lifting Capacity
- Portable Lift Design with Wheel Kit & Tow Bar
- Portable Dolly Mounted Power Unit
- 38" Working Height
- Low Drive Height of 4" for Approach of Low Vehicles
- Pneumatic Single Point Double Lock Release System
- Load Bearing Flip-Up Runway Extensions
- Optional MR6K-38-SUV Adapter Kit Available
Specifications
Lift Model: MR6.5K-38
Capacity: 6,500 lb.
Overall Length: 77"
Overall Width: 75-1/4"
Lifting Height: 38"
Min. Pad Height: 4"
Lifting Height with Adapters: 39-1/2"
Width Between Runways: 33-1/4"
Width of Runways: 18-3/16"
Lifting Speed: 40S
Pad Length: 56"
Ship Weight: 1,355 lbs
Power: 115V - 20 Amp - 1PH
Air Supply: 90 - 125 PSI
Ship Weight: 1,355 lbs
