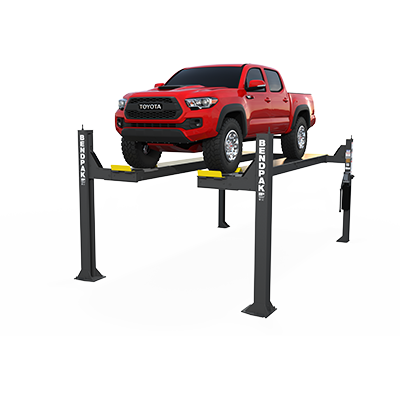

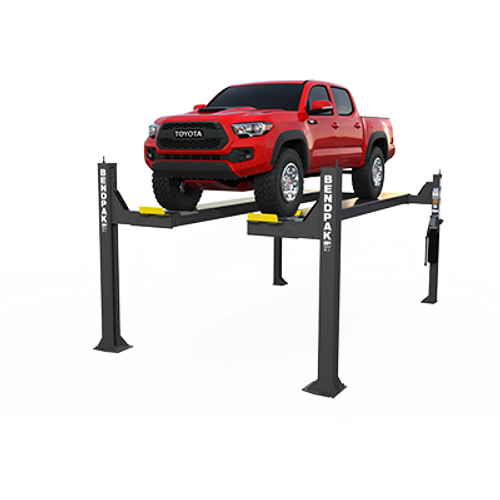

Product Description
14,000 Lb. Capacity / Alignment / Limo Extended / Includes Turnplates and Slip Plates
Features
- 14,000-lb. lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493.
- Two runway lengths to choose
- Heavy‐duty turn plates and integrated rear slip‐plates included
- Multi‐position turn plate pockets
- Automatic leveling system
- Runways include rail‐kit for optional accessories
- Electric/hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal “Anti-Sway” slider blocks in each column
- Features oversize sheaves and heavy‐duty 1/2” aircraft cable
- Rugged 1‐3/8” roller axles and oversize self‐lubricating cable sheaves
- Multi‐position safety locks in each column with push‐button safety release
- Runways adjust for different tread widths and feature non‐skid surface
- Optional 7,000 pound capacity bridge jacks available (Model RBJ7000)
|
Model
|
HDS-14LSXE
|
|
Capacity
|
|
| Lifting Capacity: (*) | 14,000 lbs. (6,350 kg) |
| *Max Capacity / Front Axle | 7,000 lbs. (3,175 kg) |
| *Max Capacity / Rear Axle | 7,000 lbs. (3,175 kg) |
|
Rise
|
|
| A - Min. Runway Height | 7.625" (194 mm) |
| B - Max. Rise | 70" (1,778 mm) |
| C - Max. Lifting Height | 77.625" (1,972 mm) |
| Time to Full Rise | 60 seconds |
|
Outside Dimensions
|
|
| D - Overall Width | 130" (3,302 mm) |
| E - Outside Length | 243" (6,172 mm) |
| F - Overall Length | 271" (6,883 mm) |
| G - Height of Columns | 93" (2,362 mm) |
|
Inside Dimensions
|
|
| H - Width Between Columns | 120" (3,048 mm) |
| I - Drive-Thru Clearance | 98" (2,489 mm) |
|
Runways
|
|
| J - Runway Width | 20" (508 mm) |
| K - Length of Runways | 229" (5,817 mm) |
| L - Width Between Runways | 37.5" or 51" (953 mm or 1,295 mm) |
|
Alignment
|
|
| M - Min. 4-Wheel Alignment | 89" (2,261 mm) |
| N - Max 4-Wheel Alignment | 156" (3,962 mm) |
| O - Max 2-Wheel Alignment | 212" (5,385 mm) |
|
Minimum Wheelbase
|
|
| Rated Capacity | 165" (4,191 mm) |
| 75% Capacity | 140" (3,556 mm) |
| 50% Capacity | 115" (2,921 mm) |
| 25% Capacity | 95" (2,413 mm) |
|
Locking
|
|
| Locking Positions | 13 |
| Lock Spacing | 4 |
|
Power Unit
|
|
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Noise | 45 dB |
|
Shipping
|
|
| Dimensions | 241" x 24" x 42" (6,121 mm x 609 mm x 1,066 mm) |
| Weight | 3,175-lbs. (1,440 kg) |
Product Videos
Custom Field
Features Includes Turnplates and Slip Plates
