Product Description

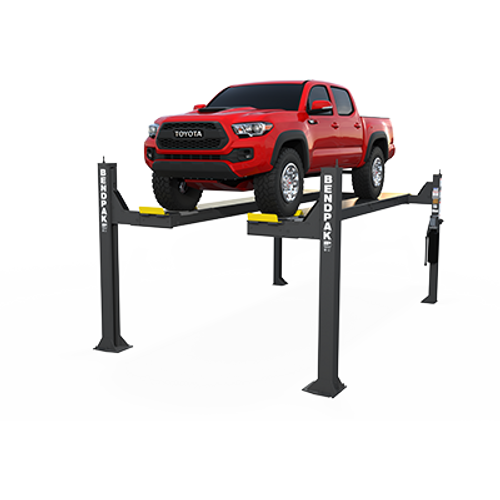

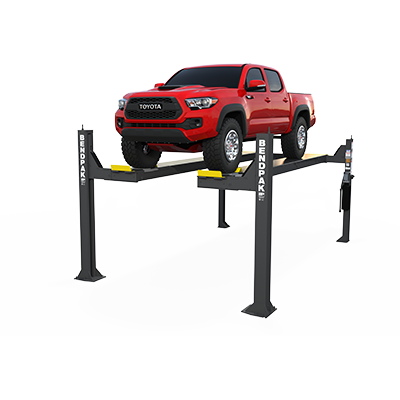

14,000 Lb. Capacity / Alignment / Extended / Includes Turnplates and Slip Plates
| Features BendPak HDS-14LSX
|
| Model | HDS-14LSX |
| Lifting Capacity* *Max capacity / front axel: *Max capacity / rear axel: |
14,000 lbs. / 6,350 kg 7,000 lbs. / 3,175 kg 7,000 lbs. / 3,175 kg |
| Overall Width | 130" / 3,301mm |
| Outside Length | 213" / 5,408 mm |
| Overall Length | 241" / 6,131 mm |
| Height of Columns | 95" / 2,413 mm |
| Min. Runway Height | 7-5/8" / 192 mm |
| Max. Rise | 70" / 1,778 mm |
| Max. Lifting Height | 77-5/8" / 1,970 mm |
| Width Between Columns | 120" / 3,046 mmm |
| Runway Width | 20" / 508 mm |
| Width Between Runways | 37-1/2" – 51" / 952 mm – 1,295 mm |
| Length of Runways | 199" / 5,054 mm |
| Min 4-wheel Alignment | 89” / 2,261 mm |
| Max 4-wheel Alignment | 156” / 3,962 mm |
| Max 2-wheel Alignment | 182” / 4,623 mm |
| Min Wheelbase @ Rated Capacity | 140” / 3,556 mm |
| Min Wheelbase @ 75% Capacity | 120” / 3,048 mm |
| Min Wheelbase @ 50%Capacity | 100” / 2,540 mm |
| Min Wheelbase @ 25% Capacity | 80” / 2,032 mm |
| Locking Positions | 13 |
| Lock Spacing | every 4" / 102 mm |
| Lifting Time | 60 Seconds |
| Motor | 220 VAC / 60 Hz. 1Ph. |
| Shipping Weight | 3,102 lbs. / 1,407 kg |
| Shipping Dimensions | 209" x 22" x 44" / 5,309 mm x 559 mm x 1,118 mm |
Product Videos
Custom Field
Features Internal “Anti-Sway” slider blocks in each column
