Product Description

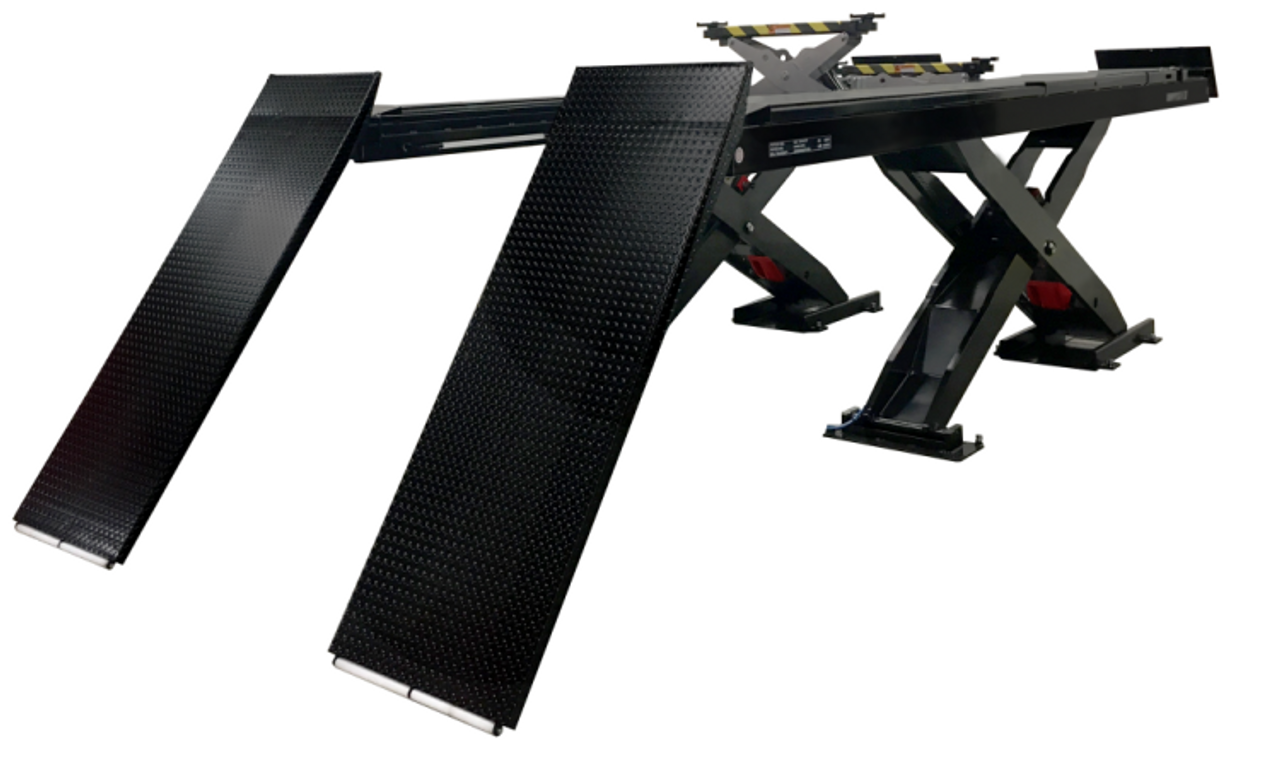

Alignment Lift, 14K Capacity, Single Scissor with 25.5 in. Runway width, Surface Mount, 183 in. Max Wheelbase, 174.75 in. Max 2 Wheel Alignment, Locking Alignment Plates, Auto on/off light feature, Two 7k capacity Rolling Jacks, Stainless Steel Turn Plates
|
|
|
Model Number
|
(Extended Approach Ramps) |
||
|---|---|---|---|
|
Lift Capacity |
14,000 lbs.
|
||
|
Installation
|
Surface Mount
|
Flush mount
|
|
|
A Overall Width
|
91 ¼"
|
||
|
B Overall Length
|
265”
|
283"
|
219”
|
|
C Distance between Platforms*
|
40"
|
||
|
D Platform Width
|
25 ½"
|
||
|
E Raise Height
|
77"
|
66 ½"
|
|
|
F Lowered Height
|
10 ½"
|
N/A
|
|
|
G Max Wheelbase**
|
183"
|
||
|
H Max Wheel Alignment
|
176"
|
||
|
I Min 4-Wheel Alignment
|
70 ¾"
|
||
|
J Distance to Controls Width
|
24" min - 64" max
|
||
|
K Distance to Controls Length
|
40" min - 74" max
|
||
|
Motor
|
3P
|
||
|
Voltage
|
208v - 240v 1 Phase 60Hz
|
||
|
Minimum Recommended Bay Size
|
14' x 28'
|
||
|
Lift Shipping Dimensions
|
212" L x 32" W x 50" H
|
||
|
Lift Shipping Weight
|
6,800 lbs
|
||
|
Console Shipping Dimensions
|
17" L x 24" W x 52" H
|
||
|
Console Shipping Weight
|
330 lbs
|
||
