Product Description
Open-Front Alignment Rack Package - 142 in. overall width with 22 in. wide runways, 277.75 in. Overall XL Extended Length, Internal encapsulated slide block design. Includes (2) RJ7.5 rolling jacks, internal air line kit, flush mount stainless steel turn plates, rear slip plates, turn plate bridges, multi-position work-steps and automatic wheel stops

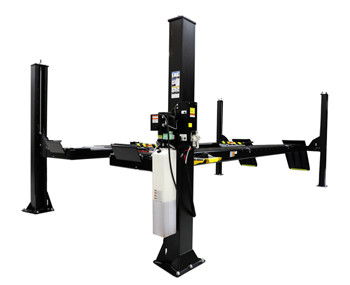

Challenger AR4115XAO Ex-Length Open Front 4 Post Alignment Rack Package 15,000 lbs
Supersedes AR4015XAO
To view the lift inspection guide Click Here.
Designed with productivity and safety in mind, our newly improved 15,000 lb 4-Post Lift would be a great addition to any shop floor. With several configurations available, you’re sure to find the lift to meet your needs.
Increase your customer base with this lift as it can accommodate and service a wide range of vehicles. Anything from a small passenger car to a medium-duty truck, and even medium-sized vans. This 4115 Series lift features an improved design with all-new and wider 22” runways, open and closed front design for better ergonomics with easy access to adjustment points, improved 4-wheel alignment wheelbase for extended alignment capabilities, louvered approach ramps, and an all enclosed front column and crossbeam design.
Alignment Rack models include a package of two 7,500 lb. rolling jacks, internal air line system for the dual rolling jacks, flush mount stainless steel turning radius gauges, rear slip plates, multi-position work-steps and automatic wheel stops.
|
|
|
|
|
|
|
|
|
|
Features
- All-new and wider 22” runways.
- Open and closed front design for better ergonomics, allowing easy access to adjustment points on both standard or long length runway racks.
- Improved 4-wheel alignment wheelbase for extended alignment capabilities allowing you to service both long and short wheelbase vehicles.
- Louvered approach ramps prevent wheel-spin and are more effective than diamond tread or abrasive strips.
- Keep your shop looking stylish & clean with our new and improved all enclosed front column and crossbeam design. Expect a longer and smoother operational life with our UHMW internally encapsulated slide block.
- Compatible with the industry’s latest imaging alignment systems.
- 17 locking positions with improved lock design.
Alignment Rack Package Includes 2) 9,000lb Rolling Jack, Flush Mount SS Turning Radius Gauges, Internal Airline Kit, Rear Slip Plates, Multi-Position Work-Steps & Automatic Wheel Stops
- Recessed stainless steel turning radius gauges provide accurate readings
- Rear recessed free floating slip plates offer a wider range of 4 wheel alignment capabilities
RJ7.5 7,500lb Rolling Jack 7,500 lb. capacity Rolling Jack for 4115series four post automotive lifts features air/hydraulic operation and includes (4) 3" stack adapters. Broaden your service revenue with easy access to brakes and wheels from underneath four post lifts. 7,500 lb. capacity rolling jacks features adjustable width, low vehicle drive-over clearance, stackable height extensions with built-in storage rack and factory installed and protected filter lubricator and regular.
Flush Mount Stainless Steel Turning Radius Gauges Stainless Steel turning radius gauges for 4P12series, 44018AR and 4115series four post car and truck lifts. Turning radius gauges are used for front wheel alignments to measure how many degrees the front wheels are turned left or right. They are commonly used when measuring caster, camber and toe-out on turns for alignment capable automotive lifts. General service four post automotive lifts can be turned into alignment capable four post lifts with a bolt on alignment kit (Part #40200-3DSS) which includes stainless steel turning radius gauges.
40230E Internal Airline Kit Internal air line kit for dual rolling jack operation on 15,000 lb. capacity four post automotive lifts. Internal airline kit, #40230E provides air for dual rolling jack on the 4115series standard length four post lifts. #40230X provides air for dual rolling jack operation on the 4115series extended length four post lifts.
|
|
Model
|
AR4115EAO
|
AR4115XAO
|
AR4115EAX
|
AR4115XAX
|
Open or Closed Front
|
Open
|
Open
|
Closed
|
Closed
|
Lift Capacity
|
15,000 lbs.
|
A Overall Length
|
250.75"
|
277"
|
247.625"
|
275.5"
|
B Overall Width
|
142"
|
C Inside of Columns
|
Front: 120.75” / Rear: 125.5
|
125.5"
|
D Between Columns
|
195"
|
222.5"
|
196"
|
223.375"
|
E Height of Columns
|
Front: 99.25” / Rear: 98"
|
98"
|
F Height of Runways
|
|
G Width of Runways
|
22.375”
|
H Width Between Runways
|
40.625”
|
I Maximum Wheelbase1
|
183"
|
210.5"
|
183"
|
210.5"
|
J Rise Height
|
78"
|
Max. 2 Wheel Alignment
|
167.75”
|
195.25”
|
167.75”
|
195.25”
|
Max. 4 Wheel Alignment
|
68" - 158"
|
Air Supply Required
|
90 -120 psi
|
Motor/Voltage 2
|
2HP, 208v-230v, 60Hz, 1Ph
|
Speed of Rise
|
85 seconds
|
Min. Recomm. Bay Size
|
14' x 24'
|
14' x 26'
|
14' x 24'
|
14' x 26'
|
